Design of shift-and-add multiplier :

Design of shift-and-add multiplier :

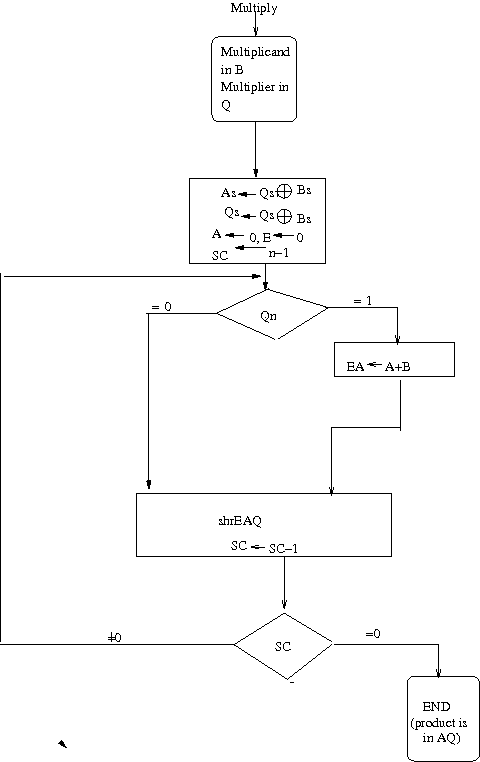

Components :

To build a shift-and-add multiplier, we need :

1. Registers
2. Complementer and parallel adder
3. Sequence qounter

Design of shift-and-add multiplier :

Procedure to do the Experiment:

1. Start the simulator as directed.
2. To add the logic components to the editor select any component and click on the position of the editor window where you want to add the component.
3. The pin configuration is shown whenever the mouse is hovered on any canned component of palette.
4. To connect any two components select the Connection menu of Palette, and then select the Source terminal and drag the mouse to the Target terminal.
5. To move any components select the Selection Mode and drag the component after selecting it.
6. Use 'Bit Display' component to see any single bit value.
7. For sequencial circuit design, use the manual clock,'Bit Switch' which will toggle its value with a double click.
8. The simulator is currently under modification for sequential circuits, now it is working properly for combinational circuits but may not give proper output for sequential circuits.
9. save, open options and automated clock are under development.
10. If you are using linux platform then click on 'Linux(32 bit)' or if you are using then click on 'Windows(32 bit)'

Linux(32 bit)

Windows(32 bit)

Procedure to do the Experiment:

1. Start the simulator as directed.
2. To add the logic components to the editor select any component and click on the position of the editor window where you want to add the component.
3. The pin configuration is shown whenever the mouse is hovered on any canned component of palette.
4. To connect any two components select the Connection menu of Palette, and then select the Source terminal and drag the mouse to the Target terminal.
5. To move any components select the Selection Mode and drag the component after selecting it.
6. Use 'Bit Display' component to see any single bit value.
7. For sequencial circuit design, use the manual clock,'Bit Switch' which will toggle its value with a double click.
8. The simulator is currently under modification for sequential circuits, now it is working properly for combinational circuits but may not give proper output for sequential circuits.
9. save, open options and automated clock are under development.
10. If you are using linux platform then click on 'Linux(32 bit)' or if you are using then click on 'Windows(32 bit)'

Right now there is a bug so it is not possible to perform this experiment correctly with sequential circuits.

Click on the "Start" button which will appear after the applet loads

Procedure to do the Experiment:

1. Start the simulator as directed.
2. To add the logic components to the editor select any component and click on the position of the editor window where you want to add the component.
3. The pin configuration is shown whenever the mouse is hovered on any canned component of palette.
4. To connect any two components select the Connection menu of Palette, and then select the Source terminal and drag the mouse to the Target terminal.
5. To move any components select the Selection Mode and drag the component after selecting it.
6. Use 'Bit Display' component to see any single bit value.
7. For sequencial circuit design, use the manual clock,'Bit Switch' which will toggle its value with a double click.
8. The simulator is currently under modification for sequential circuits, now it is working properly for combinational circuits but may not give proper output for sequential circuits.
9. save, open options and automated clock are under development.
10. If you are using linux platform then click on 'Linux(32 bit)' or if you are using then click on 'Windows(32 bit)'

Right now there is a bug so it is not possible to perform this experiment correctly with sequential circuits.

Click on the "Start" button which will appear after the applet loads

Design of shift-and-add multiplier :

References :

Books:

1. Digital Logic and Computer Design - M. Morris Mano. Pearson Education - Prentice Hall.
2. Digital Principles Foundation of Circuit Design and Application - Arun Kumar Singh. New Age Publishers.
3. The Art of Electronics - Paul Horowitz and Winfield Hill (1989). Cambridge University Press
4. Modern Dictionary of Electronics - Rudolf F. Graf (1999). Newnes
